Ensemble 2000 standard CAT
Hayward
UGS : CAT2000

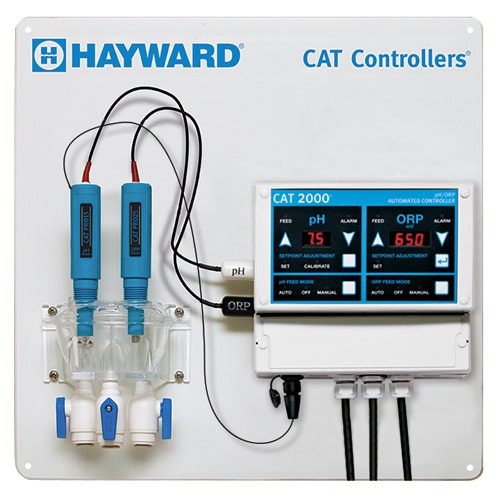

Le contrôleur CAT 2000 assure une surveillance continue du niveau de pH et de l’activité du désinfectant (systèmes utilisés pour le chlore, le brome et la quantité de sel) et ajuste automatiquement le dosage chimique selon la demande pour obtenir une qualité d'eau parfaite, et ce, en tout temps.
Caractéristiques
Le CAT 2000MD surveille constamment le pH et l'activité des produits d'assainissement (le chlore, le brome et même les systèmes à base de sel) et ajuste automatiquement l'alimentation en produits chimiques en fonction de la demande pour une eau parfaite à tout moment.
- Conception numérique à microprocesseur avec technologie flash
- Caractéristiques de contrôle avancé, y compris l'alimentation proportionnelle
- Interface sur panneau frontal avec interrupteur tactile imperméable
- Tous les réglages de l'usine sont stockés de façon permanente dans la mémoire
- Installation, configuration et fonctionnement simples
- Compatible avec tous les types d'équipement d'alimentation en produits chimiques
- Sorties à contact sec fournies pour les systèmes de chloration par le sel
- Capteurs de catégorie professionnelle avec jonctions de référence en Téflon

- Les produits de la gamme EXPERT LINE sont offerts seulement par le biais de votre spécialiste de piscines local ou en magasin. Des exclusions et d’autres conditions générales peuvent s’appliquer.
Des exclusions et d’autres conditions générales peuvent s’appliquer.
| Application | Nouvelle construction, rénovation, marché secondaire |
|---|---|
| Marque | Hayward |
| Canal | Gamme Expert Line |
| Numéro d’article du commerce mondial (Global Trade Item Number, GTIN) | 610377362573 |
| Warranty - Labor | 5 ans |
| Qté de boîtes principales | 1 |
| Warranty - Parts | 5 ans |
| Type de piscine | Utilitaire |
| Dimensions d’expédition | 9 po x 19 po x 18 po |
| Poids d’expédition | 11,4 lb |
| Sous-marque | S.O. |
| Automatisation de la série | CAT-2000 |
Documentation
Design Files
Questions & Answers
9 answered question(s)
Please log in to submit a question.
Q: Hello, We have an older Cat 2000 at one of our City splash parks. This unit is in a clamshell all year exsposed to the summers high temps and winter lowes. Can this effect the longevity of the unit? Recently it dumped all the chlorine into the system overnight. I flushed the system and even put new sensors in, but the PH and ORP values were erratic. How long do these units last and is there a way to know if it is going bad. Thanks for any help. Is there any online training for this unit? Roger Parker CPO City of Medford Oregon
By Hayward Support
Q: Is there a part number for the blue handles on the valves underneath the probes? Or a part number for the valves?
By Hayward Support
Q: What is the price?
By Hayward Support
Q: Hello, I have a HCC-2000 controller. I'm not getting power to the chlorine feed pump in auto or manual feed. The fuse is good as is the feeder pump itself. Is a replacement board available? Thank you
By Hayward Support
Q: According to our new county health inspector needs to be at 700 mv minimum. When I do this my chlorine level is above 10ppm.Is there a way to set it so that it says 700 to 715 and get my chlorine level back to around 4 or 5 ppm?
By Hayward Support
Q: We have a 25 000 gl commercial pool with a Cat 2000 PHP/ORP Automated Controller. We are interested in adding a module that would allow remote monitoring and recording of the pool chemistry. Do you have an add on module? If not, what are my option?
By Hayward Support
Q: We have a cat2000 controller that will not activate the chlorine pump in auto setting. It works if put into manual but will not respond to low numbers in auto. We checked fuses in bottom compartment and all are good. Is there anything else we can try or do we need to look at replacing the whole unit, Any assistance would be greatly appreciated..
By Hayward Support
Q: Our new HCC 2000 controller the ORP is still factory set at 650MV but for 14 days it is reading 915 MV or more and the chlorine levels are very high 10+ what is causing this
By Hayward Support
Q: why is my controller cutting off at night? where can i get a copy of the manual ? what is the tech help phone number?
By Hayward Support
