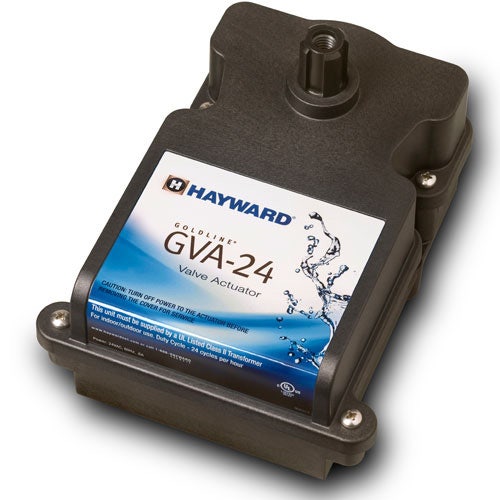

Name: GVA-24 Valve Actuator
SKU: GVA-24
Availability: InStock

Caractéristiques

La configuration standard du GVA-24 signifie qu’il est compatible avec toutes les vannes et tous les systèmes d’automatisation de piscine des principaux fabricants. Le réglage unique de la came assure une installation rapide et facile avec le contrôle précis du débit d’eau.

Pour la commodité des installateurs, des trousses qui combinent l’actionneur GVA-24 de vanne avec des vannes à 3 ports sont disponibles. Pour les installations de chauffage solaire, des trousses solaires sont disponibles qui combinent une valve motorisée, une vanne à 3 ports et un capteur de température.

Caractéristiques et avantages

Configuration standard de l’industrie, à utiliser avec n’importe quelle vanne
Fonctionne avec des vannes à 2 ou 3 ports
Cames faciles à régler
Permet à la valve motorisée d'être montée dans n'importe quelle position
Rotation jusqu’à 180 degrés par incréments de 12,8 degrés
Interrupteur manuel
Monté sous la valve motorisée pour minimiser les manipulations
En position MARCHE 1-en position Arrêt-en position MARCHE 2
Permet une rotation manuelle en cas de panne de courant
Couple nominal le plus élevé disponible
20-foot cable with industry standard plug
Conforme aux normes UL et cUL

Application	Nouvelle construction
Marque	Hayward
Canal	Open Line
Numéro d’article du commerce mondial (Global Trade Item Number, GTIN)	761418002139
Warranty - Labor	Aucune
Qté de boîtes principales	12
Quantité sur la palette	300
Warranty - Parts	1 an
Type de piscine	Creusée
Automatisation de la série	Actionneurs de vanne

Questions & Answers

15 answered question(s)

Peter Vrana Verified User

24/06/26

Q: Should I set up valve actuator to number 1 or number 2. Thanks.

A:

Follow the installation instructions in the manual below. https://hayward.com/media/akeneo_connector/asset_files/0/9/092051B_RevE_fbb3.pdf

By Hayward Support

Kyle Verified User

24/06/26

Q: Does the actuator just fully open and close or can it be programmed to open halfway

A:

It is designed to fully open or close.

By Hayward Support

Jim Hill Verified User

24/06/26

Q: water is leaking out from the actuator. can i buy just the gasket and O ring. assuming that is the problem. during start up the valve stuck on a 2in. pipe above it thanks

A:

Hi, there are no replacement parts available for the GVA-24. We do not sell direct, but you can find a list of local Hayward Authorized Dealers by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

Ron F Verified User

24/06/26

Q: One of our actuators is not responding to commands from the control panel. Response to the toggle switch is still good. What are the troubleshooting steps to take? And if it turns out to be a faulty wire, can I order that from you? Thank you

A:

Hi, you can check to see if 24 volts are being supplied to the valve. We do not sell the cable separately. Hi, for help with this contact a local Hayward Authorized Service Center. You can find a list of them by clicking on the Dealer Locator tab on ...

By Hayward Support

Lori Verified User

24/06/26

Q: My actuator starts to open upon start up but then closes. What is the issue?

A:

Hi, give our Tech Support Group a call for help with this issue at 908-355-7995.

By Hayward Support

Matthew Tanner Verified User

24/06/26

Q: Water got in and seemed to corroded my capacitor wire. It broke into. Everything else seems OK. Can the capacitor be ordered? I'm having trouble finding one that similar.

A:

Hi, unfortunately there are no parts available for this product.

By Hayward Support

Alicia Frecker Verified User

24/06/26

Q: I have a gva24 that connects my pool pump to my solar pool heater. We turned off the heater over the winter. I went to turn it on but am unsure if the actuator is positioned correctly and my pool person says HD "doesn't want to be liable" in case he does it wrong. The pipe from the pump comes in from below and the two pipes up the wall go to the roof solar panels (water goes up one and down the other I assume). The gva24 is installed vertically and the handle os pointing directly right. The word closed is on the left side. So i assume it is open and ready to go? I can send a pic.

A:

Hi, someone from our Technical Service Department will contact you via email.

By Hayward Support

Jeremy Bessette Verified User

24/06/26

Q: Where can I get a replacement cable that goes from my OmniLogic panel to the Valve actuator itself?

A:

Hi, that cable is not available as a spare part.

By Hayward Support

Denise Verified User

24/06/26

Q: If my actuator has gone bad, do i need to purchase any other parts besides this? Does it come with the lever/handle?

A:

Hi, you would just need to replace the actuator. It does not come with the handle. That comes on the valve itself.

By Hayward Support

Mario Martinez Verified User

24/06/26

Q: Why is my spa draining?

A:

Hi, for help with this contact a local Hayward Authorized Service Center. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

Jesse G. Verified User

24/06/26

Q: Can the actuator be mounted vertically?

A:

Yes it can.

By Hayward Support

Richard Runnells Verified User

24/06/26

Q: Is there any maintenance needed or possible

A:

There is no maintenance or service needed on these valve actuators.

By Hayward Support

Therese Springs Verified User

24/06/26

Q: I need to replace my pool actuator S/N:C12JVALD2500 is this valve compatible if not what valve should I replace it with

A:

Hello, Someone from our technical team will contact you shortly.

By Hayward Support

Pierre Verified User

24/06/26

Q: Can the devise operate with a 24 VAC supply at 50 Hz, (which is the standard in Europe) ? Could you please confirm if this actuator is suitable for this frequency conditions or if any specific adaptation is required?

A:

Hi, the GVA-24 is only rated for use at 60Hz.

By Hayward Support

Shannon Holland Verified User

24/06/26

Q: The valve is closed but water is still getting to my roof solar system. Is there a service kit I can purchase to fix this?

A:

Hi, someone from our Technical Service Department will contact you via email.

By Hayward Support
